Milestone 3

Construction Phase - Development of the main Use Cases and Deployment of MVC.

Construction Phase - Development of the main Use Cases and Deployment of MVC.

🧑‍💻 Implemented Use Case

This milestone main use case was to enable a guest user as a single individual person to create a a trip type of “Place”, which, allows the user to choose a certain location to travel or visit for a days interval, with still an itinerary related to a set of preferences filled by the user.

🏛️ Architecture

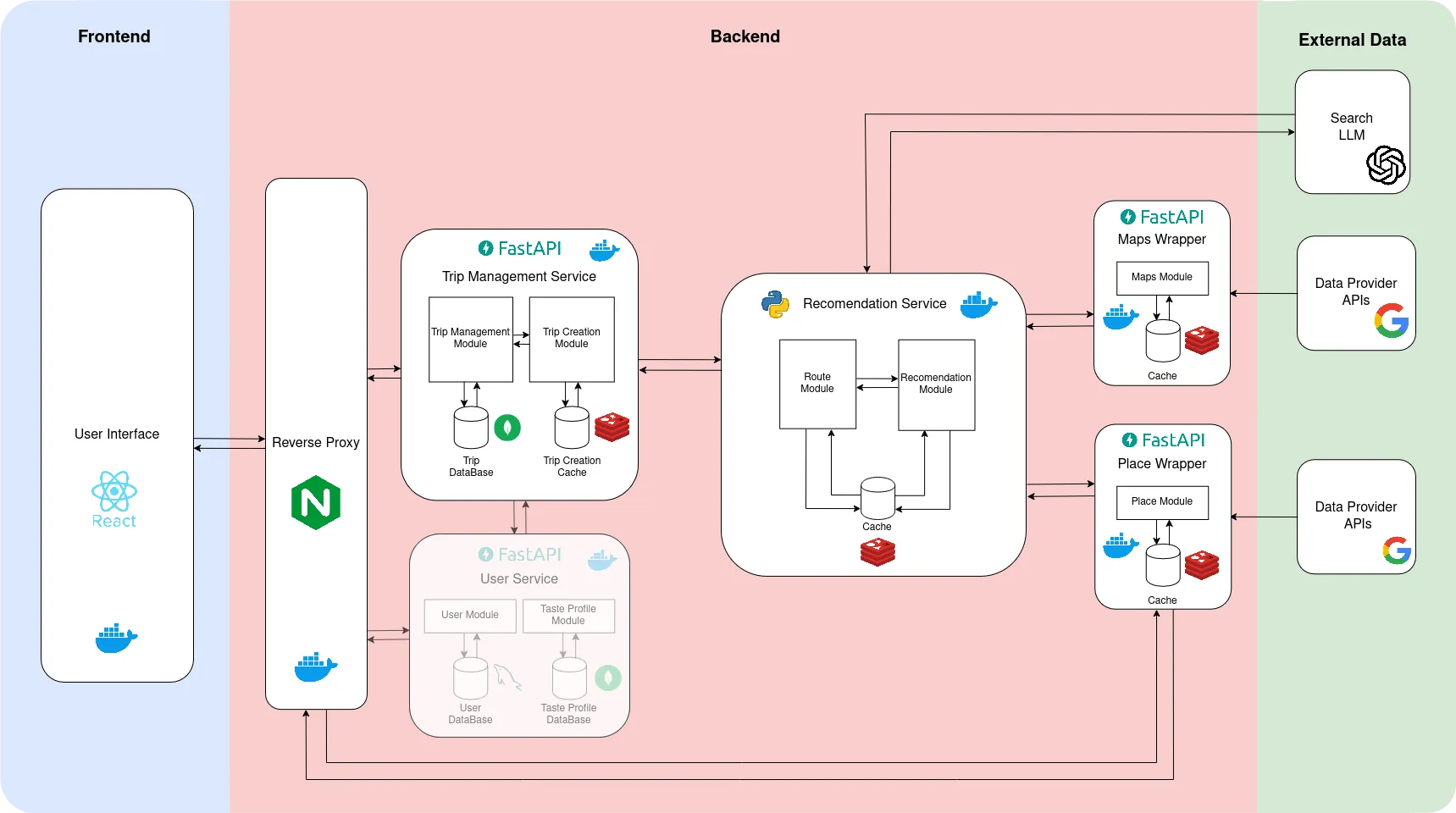

New Architecture

🧭 Workflow

1. Trip Initialization

  • User Action: Clicks "Create Trip" on the landing page.
  • System Response: Displays trip type selection options.
  • User Action: Selects "Individual Trip" → Chooses "Place" type via UI card.
  • Outcome: User is redirected to the location selection interface.

2. Location Search & Selection

  • User Action: Enters a location keyword into the search input field.
  • System Response:
    • Triggers autocomplete (via Places Wrappers -> Google Places API).
    • Returns a list of location suggestions in real time.
  • User Action: Selects a suggested location.
  • System Response:
    • Centers the map on the selected location.
    • Places a visual marker on the map to indicate it.

3. Trip Date Selection

  • User Action: Inputs desired trip duration using two date pickers (start_date and end_date).
  • Outcome: Stores the selected date range in trip context/session.

4. Preferences Questionnaire

  • User Action: Completes a form with a series of trip-related questions.
  • UI/UX Design:
    • Inputs use Likert scales (1–7 range).
    • Covers topics such as activity type, pace, interests, group dynamics.
  • System Response:
    • Captures user preferences.
    • Translates answers into structured parameters for itinerary generation (categories, scores).

5. Itinerary Generation

  • System Action:
    • Aggregates all collected input data: destination, dates, preferences.
    • Queries relevant services (e.g., recommendation engine, route planner).
  • System Output:
    • Returns a dynamically generated itinerary.
    • Includes ordered list of locations, suggested activities/locations, and routes.
  • User View:
    • Visual itinerary preview.
    • Map with highlighted stops and routing paths.

🛠️ Construction Phase

1. Development Setup

  • CI/CD pipelines
  • Service setup
  • Multi-service dev environment (orchestrator model)

2. Feature Implementation

  • Data collectors
    • Maps Wrapper
    • Places Wrapper
  • Recommendation system & UI
  • Route system & UI
  • Trip creation backend & frontend

3. APIs & External Services

  • Google API integration
    • Google Places API (new)
    • Google Routes API
    • Google Maps API
  • LLM integration for activity scheduling

🧠 Road Blocks & Learning Process

  • Deployment & environment configuration
  • Managing modular services
  • Integrating external APIs effectively

Future Work (M4)

  • Emplementation of Group Preferences
  • Editing Itinerary feature
  • User oriented features (Sign In, Sign Up, add friends to trip .etc)
  • Realtime editing group itinerary feature
